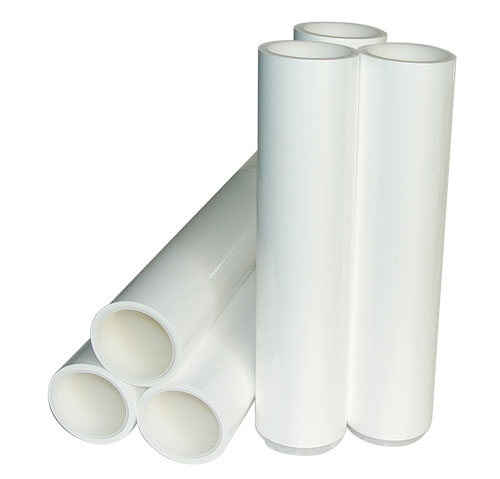

ADHESIVE ROLLER
 Outline
Adhesive Roller is
technically used for removing dust at semi-conductor factory and it is
effectual to remove dust in
carpet and cloth which are not easy to clean.
Moreover,it is designed in the shape of easily cut tape
convinient to use.
Composition/Construction
Features
and Applications
 Sizes convenient in various locations.
Semi-conductor
and electronic manufacturing.
Base
Material and Data
|
BASE MATERIAL |
DATA |
|
Film |
Polypropylene |
|
Adhesive |
Polyacrylate |
|
Hardener |
Isocyanate |
|
Re-solvent |
Ethylacetate |
Physical/general
Properties
|
PROPERTY |
ADHESIVE ROLLER |
|
Film |
Material |
PP |
|
Color |
Milk white |
|
Width (mm) |
All
sizes available upon customer's request. |
|
Length (m) |
All
sizes available upon customer's request. |
|
Thickness (μm) |
70-100 (Tolerance;±5μm) |
|
Inner diameter of core (mm) |
76.2±0.5（Tolerance:±0.5mm） |
|
Rupture Elongation factor (%) |
300 over |
|
Tensile strength (Kg/cm2) |
500 over |
|
Adhesive force (g/25mm) |
100-1200 |
|
Features |
Dead-fold
characteristics , non-polluting , without pinhole
,
uniformly thickness and width ,
adequate adhesiveness along its
full length , and high durability. |
